Atlas Copco 1613 6105 00 ED 2 Oil Filter

Atlas Copco 1613 6105 00 ED 2 Oil Filter

Parts & Accessories

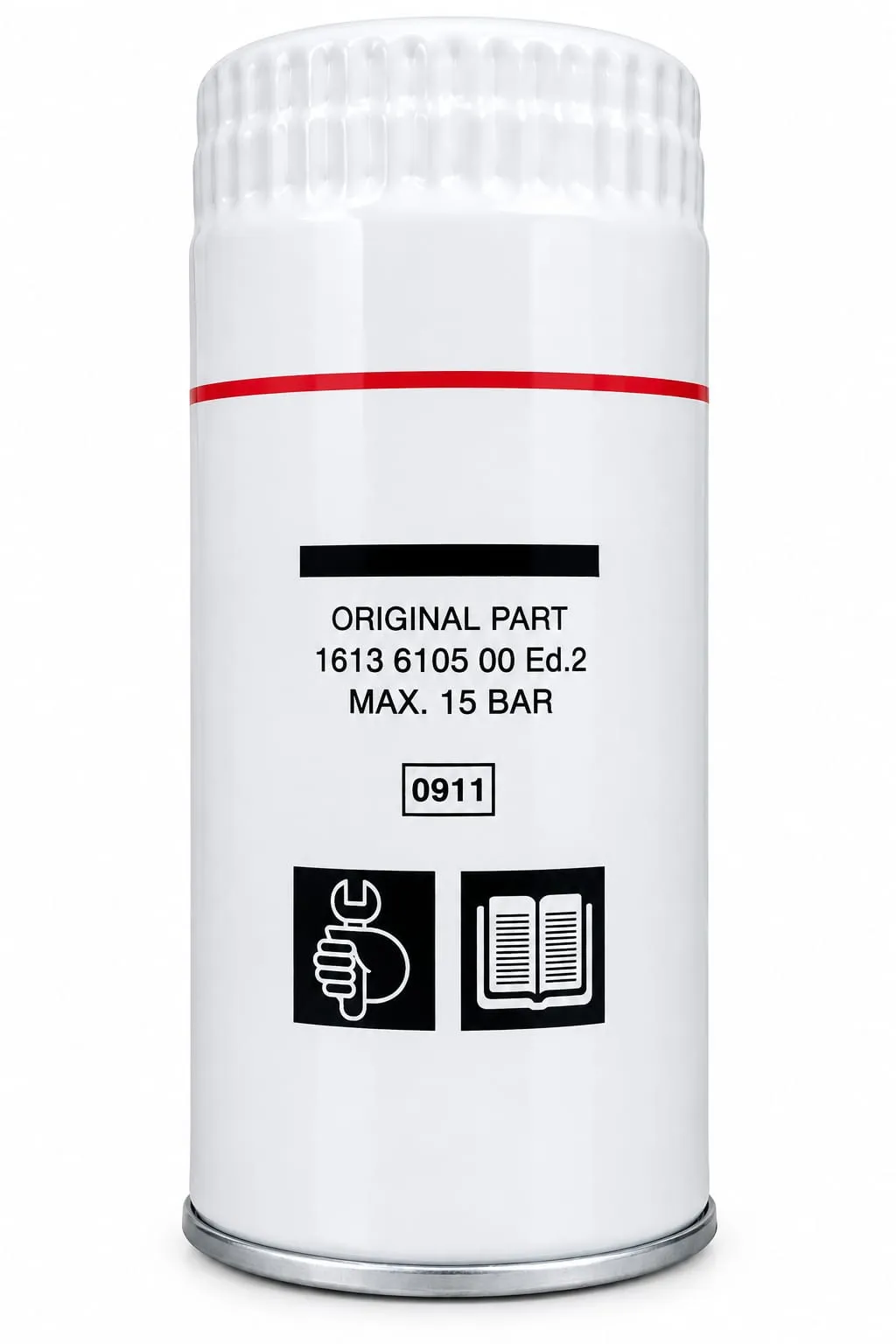

The Atlas Copco 1613 6105 00 ED 2 is a genuine spin-on oil filter element designed to remove solid particles, carbon residue, and metal contaminants from the lubricating oil in Atlas Copco rotary screw air compressors. By maintaining oil cleanliness, it protects the airend rotors and critical internal components from premature wear, ensuring reliable compressor performance and extended service life. This filter is rated for a maximum working pressure of 15 bar and is a direct replacement for the older part number 1613-6105-90.,The filter media is constructed from superfine glass fiber imported from HV Company (USA) or wood pulp filter paper from Ahlstrom (Korea), delivering a filtration rating of 10–15 microns and a filtration efficiency of 98.8%. The spin-on design features an initial pressure difference of 0.03 MPa and is compatible with a wide range of Atlas Copco compressor models including the GA5, GA7, GA10, GA11, GA15, GA18, GA22, GA30, GA37, GA45, GA50, and GA55 series. Under normal operating conditions, the filter has a recommended service life of approximately 3,000 hours.
