Atlas Copco FX13 Refrigerated Air Dryer

Atlas Copco FX13 Refrigerated Air Dryer

Air Dryers

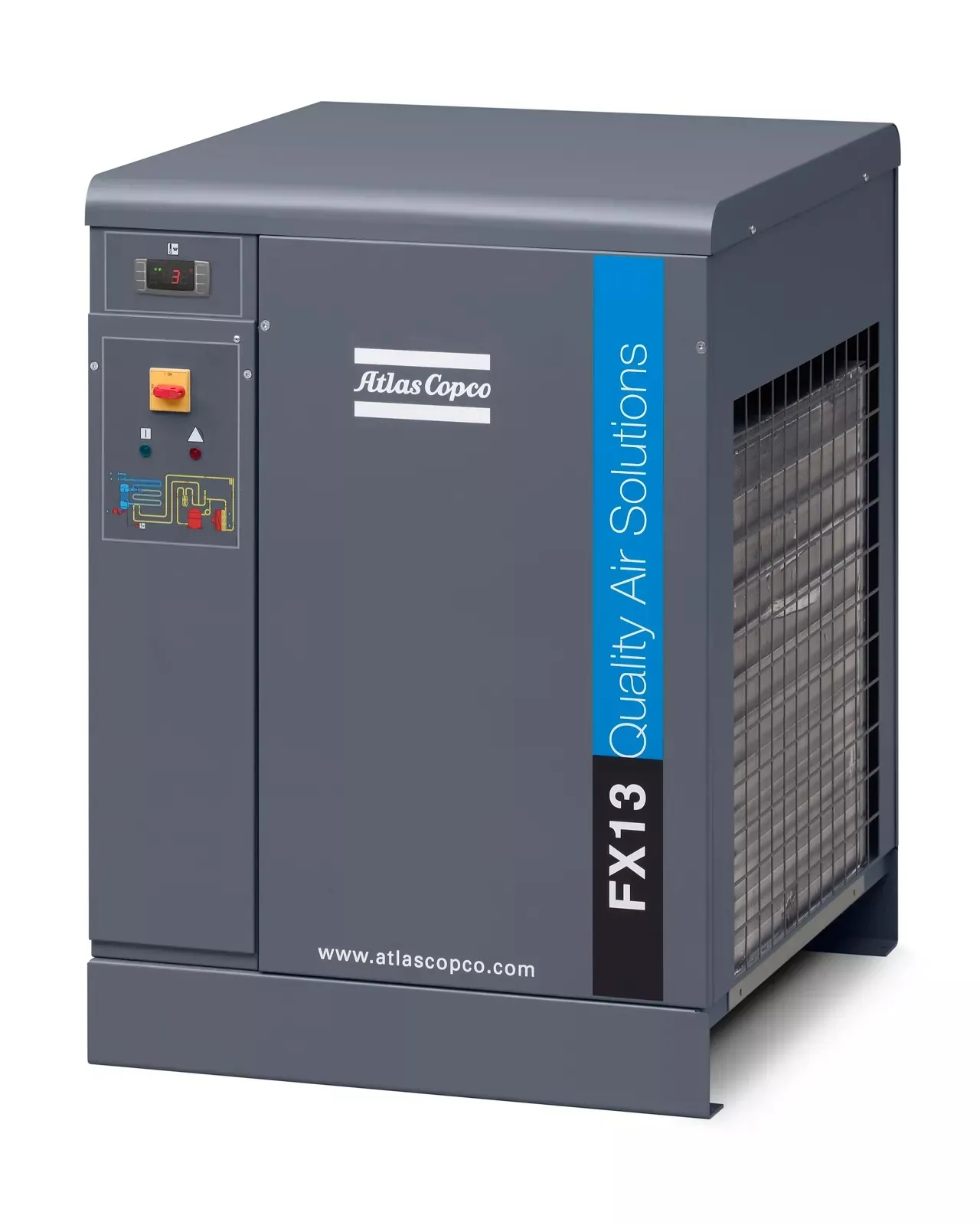

The Atlas Copco FX13 is a high-performance refrigerated air dryer from the FX series, designed to deliver clean, dry compressed air with a stable pressure dew point as low as +3°C. With a rated inlet capacity of 192 l/s (407 CFM) and a maximum working pressure of 13 bar, it is engineered to handle the output of large rotary screw compressors, preventing pipe corrosion, product damage, and premature failure of pneumatic equipment in demanding industrial environments.,The FX series features an innovative 3-in-1 heat exchanger that combines pre-cooling, evaporation, and reheating in a single compact unit, minimising pressure drop and improving overall efficiency. The dryer is equipped with a digital controller featuring a large LCD screen that displays the pressure dew point and running status, along with alarms for high/low dew point and probe failure. A quality gas bypass valve manages the risk of heat exchanger freeze, while dual drains ensure reliable condensate removal. The unit uses eco-friendly R410A refrigerant with zero ozone depletion potential and is supplied completely ready for operation with quick plug-and-play installation.
