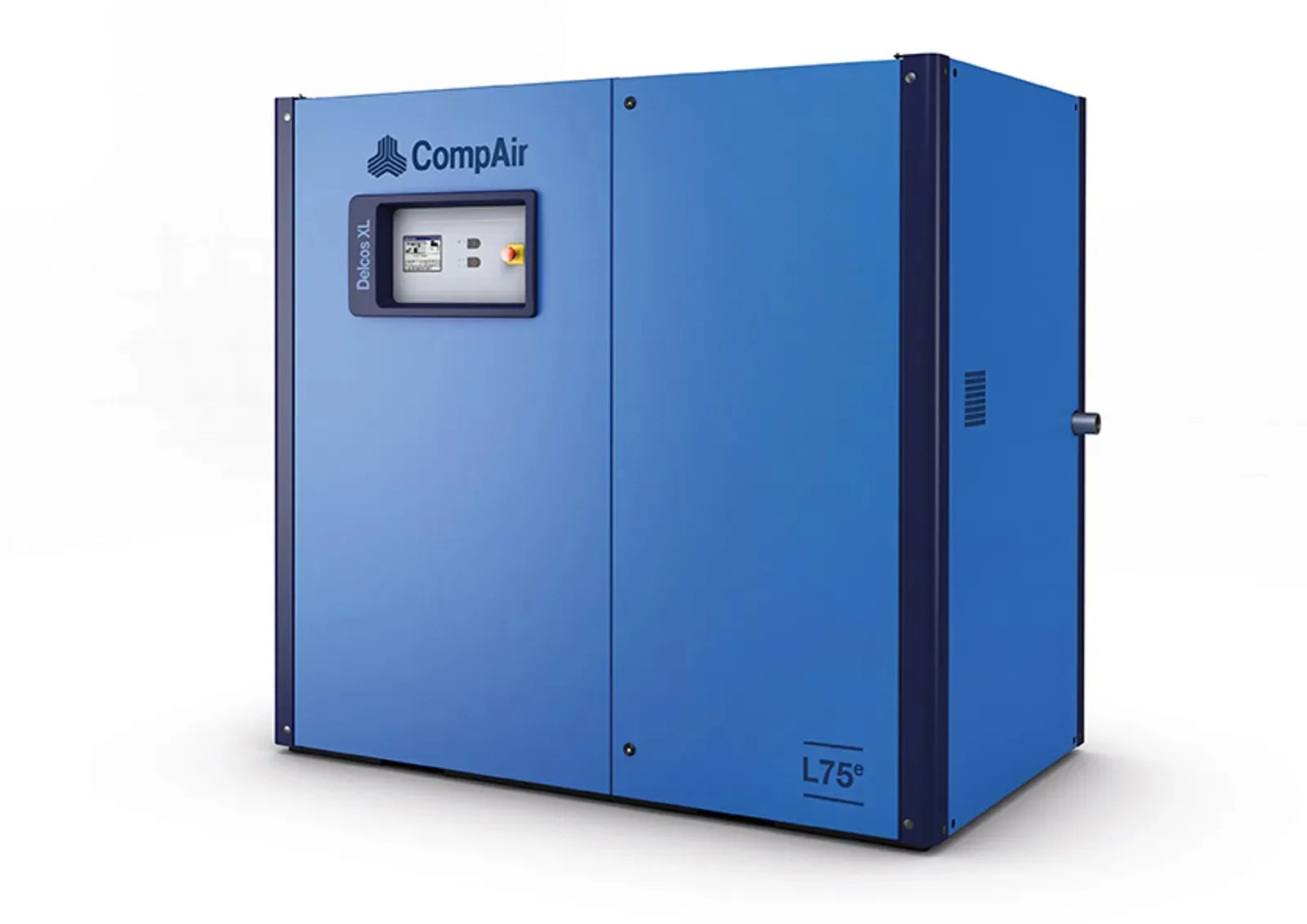

CompAir L75 Rotary Screw Air Compressor (2010)

Compressors

CompAir L75 Rotary Screw Air Compressor (2010)

CompAir L75 Rotary Screw Air Compressor (2010)

Compressors

The CompAir L75 is a heavy-duty, oil-lubricated rotary screw air compressor from the renowned L-Series, designed and manufactured at CompAir's Centre of Excellence in Simmern, Germany. This 2010 model is a fixed-speed variant, delivering reliable and consistent compressed air output for continuous industrial duty. With a 75 kW motor and a pressure range of 5 to 13 bar, the L75 is engineered to supply high-quality compressed air to manufacturing, food processing, and general plant air systems.,The unit features CompAir's advanced semi-integrated airend with a slow rotational speed that minimises energy consumption while maximising performance and service life. It is controlled by the intelligent DELCOS XL system, which continuously monitors operating parameters, provides trend diagrams, and protects the investment through fault history logging and auto-restart after power failure.

Specifications

BrandCompAir
ModelL75
Year of Manufacture2010
Motor Power75 kW / 100 HP
Working Pressure10 Bar
Capacity (FAD)440 CFM / 12.5 m³/min
Compression TypeOil-Injected Rotary Screw
Cooling MethodAir-Cooled
Drive TypeDirect Drive
ControllerDELCOS XL
Noise Level72 dB(A)
Power Supply380V / 50Hz
Dimensions (L×W×H)1958 × 1138 × 1857 mm
Weight1495 kg
