Electronic Timer Auto Drain Valve — 220V AC

Electronic Timer Auto Drain Valve — 220V AC

Parts & Accessories

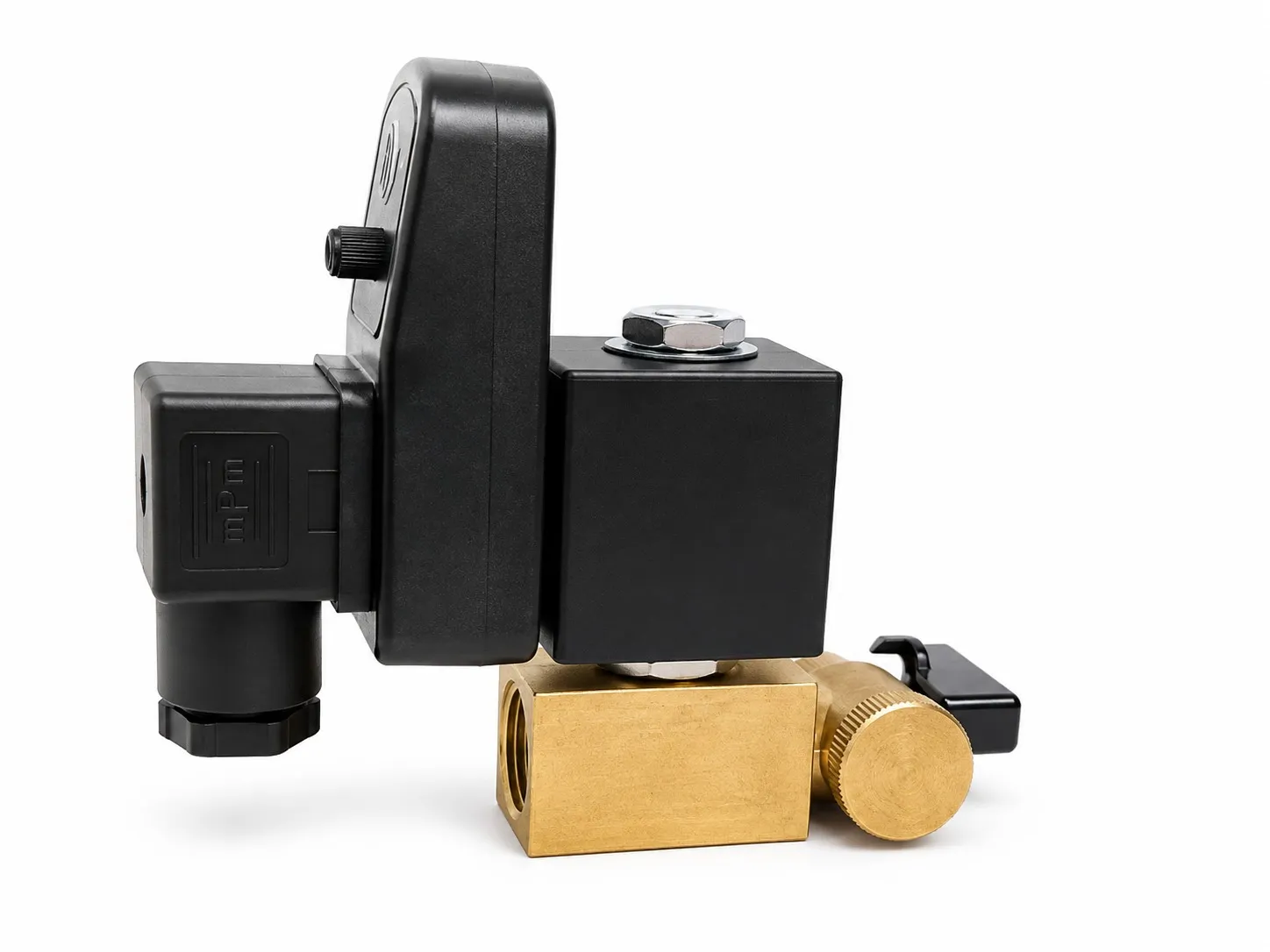

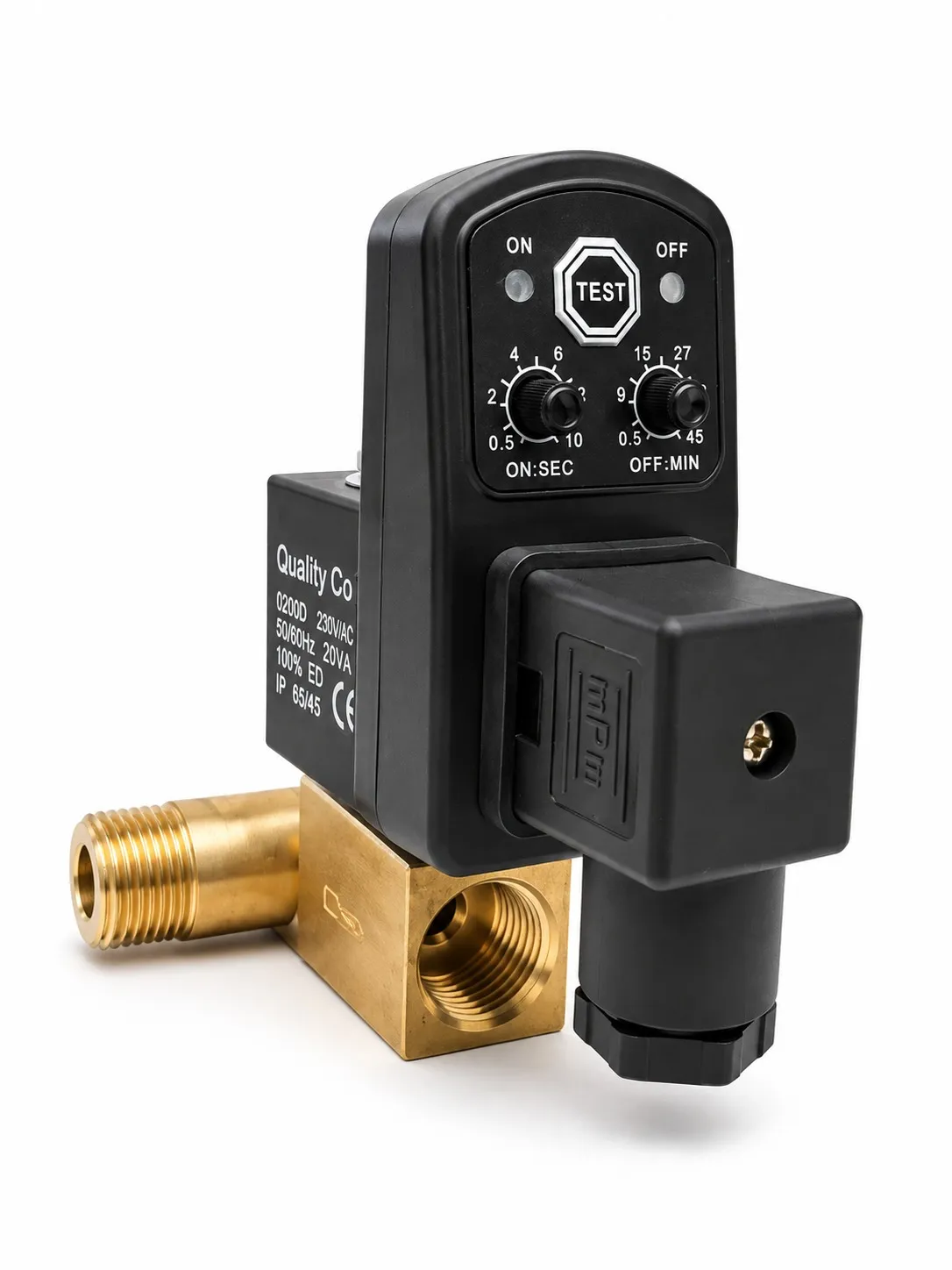

This electronic timer auto drain valve is designed for automatic removal of condensate from air compressor tanks, air receivers, filters, dryers, and aftercoolers. Powered by 220V/230V AC, it eliminates the need for manual draining and prevents water accumulation that can corrode tanks, damage pneumatic tools, and reduce compressed air quality.,The valve features an adjustable electronic timer with a wide setting range — opening time adjustable from 0.5 to 10 seconds and closing interval adjustable from 0.5 to 45 minutes — allowing precise control over condensate discharge and minimising compressed air loss. A built-in test button enables manual actuation for easy function checks, while bright LED indicators display power status and valve open/close cycles.,The brass-bodied solenoid valve operates as a 2/2 normally closed direct-acting unit rated for working pressures up to 16 bar, with an IP65 protection class for resistance to dust and water ingress. An integrated mesh strainer prevents large particles from clogging the valve, and the compact design allows mounting in any orientation for easy installation in confined spaces.
